3 motion types
Versatility and flexibility at work
The ability to choose from 3 operating modes allows the device to be adapted to the individual clinical case, the file system in use, and the dentist’s preferences.
Rotational motion
The contra-angle handpiece rotates forward 360°, clockwise.
ATR motion
Combination of rotation with reciprocal motions. When less force is applied to the instrument, the contra angle handpiece works in a rotational motion. When a higher load is applied to the instrument, the contr aangle handpiece works in a reciprocal motion.
F-R motion
Forward-reverse motion. Reciprocal motion (left-handed or right-handed). Safe canal preparation thanks to alternating partial forward (F) and reverse (R) file rotations. You can set the range of each file rotation by entering the angles for F and R. A full rotation is 360 degrees.
Built-in apex locator
Accurate canal length measurement with built-in apex locator.
You don’t have to switch on the contra-angle handpiece to start
the apex locator.
The endometer can measure canal length:
- During handpiece operation
- Independently (without activating the handpiece)
The canal measurement kit includes:
- measuring wire,
- lip hook,
- touch probe,
- file clip.

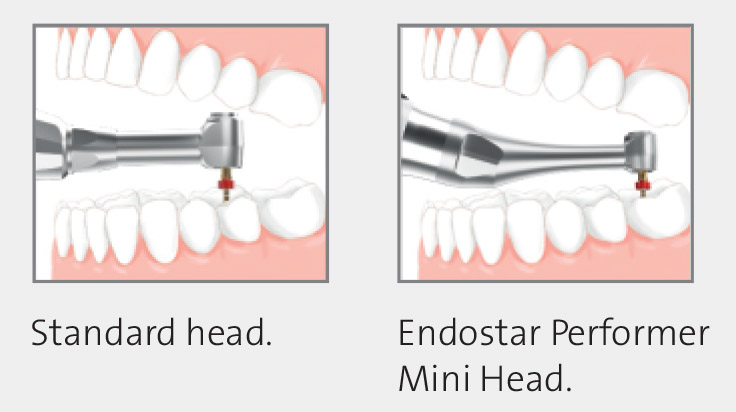

Mini 8 mm head
Small head with a diameter of 8 mm and a height of 9.7 mm improves visibility. The 360° rotation allows the user to comfortably place the contra-angle handpiece in their hand.
Works with most files available on the market
Due to fully adjustable parameters, the device can work with most files. Endostar Performer has preloaded settings for Endostar systems and free programs with a choice of other systems available on the market.
You don’t have to set anything up! Switch it on, choose the right file and work.
- 6 Endostar programs (editable)
- 9 open programs with the option to choose systems from other manufacturers
- 1 MO (EAL) program – for measuring the working length of root canals
Settings for Endostar files programmed into the contra-angle handpiece
Quiet, brushless motor
Significantly quieter motor operation than in most competing devices increases
user comfort.
Intuitive operation
An easy-to-read panel and intuitive parameter settings (speed and torque)
speed up work and make it safer.
Balanced weight
The center of gravity has been shifted to the front of the device, providing
even greater comfort and work efficiency.
Technical specifications
- Torque range: 0.2 Ncm – 5.0 Ncm (2 mNm ~ 50 mNm)
- Speed range: 100 RPM ~ 1800 RPM
- Battery: Lithium battery in micromotor, 3.7 V / 2000 mAh
- Gear ratio: 6:1
- Reciprocating motion angle adjustment range: 20°–400°, in 10° increments
- Rotation range: 360°
- Charging time (from 0% to 100%): 3.36 hours
- Continuous operation time: Up to 5 hours (depending on speed and torque settings)
- Weight: 152 g
Endostar Performer - endodontic micromotor with apex locator
EPERF
